Parameter	Value	Parameter	Value	Parameter	Value
Model	SY245G	Operating Weight	25,500 kg (ISO standard)	Bucket Capacity (ISO Heaped)	1.4 m³ (standard) / 1.3–1.5 m³ (optional)
Engine Model	Cummins QSB6.7 (6-cyl turbo)	Rated Power (Net)	150 kW (201 HP) @ 2,000 rpm	Displacement	6.7 L
Max. Bucket Digging Force	175 kN (ISO)	Max. Stick Digging Force	120 kN (ISO)	Rotation Speed	10.6 rpm
Travel Speed	5.4 km/h (High) / 3.4 km/h (Low)	Gradeability	70% (35°)	Ground Pressure	52.5 kPa (600 mm tracks)
Max. Digging Depth	6,705 mm (22’0″)	Max. Digging Radius	10,225 mm (33’7″)	Max. Loading Height	6,715 mm (22’0″)
Track Width (Steel)	3,190 mm	Track On Ground Length	3,640 mm	Rear Swing Radius	3,105 mm
Fuel Tank Capacity	475 L	Hydraulic System Pressure	34.3 MPa (working)	Hydraulic Pump Flow	2×220 L/min (dual variable)
Transport Dimensions (L×W×H)	10,290×3,190×3,255 mm	Minimum Ground Clearance	470 mm	Cab Height	3,255 mm
Engine Torque	750 N·m @ 1,500 rpm	Emission Standard	China IV / EPA Tier 4 Final	Boom/Stick Length (Std)	5,900 mm / 2,950 mm
Coolant Capacity	31 L	Engine Oil Capacity	22 L	Traction Force	167 kN
Standard Features	ROPS/FOPS Cab, 10″ Smart Display, Auto-idle	Hydraulic Quick Hitch	Optional	Maintenance Interval	500H (filters) / 2000H (hydraulic oil)

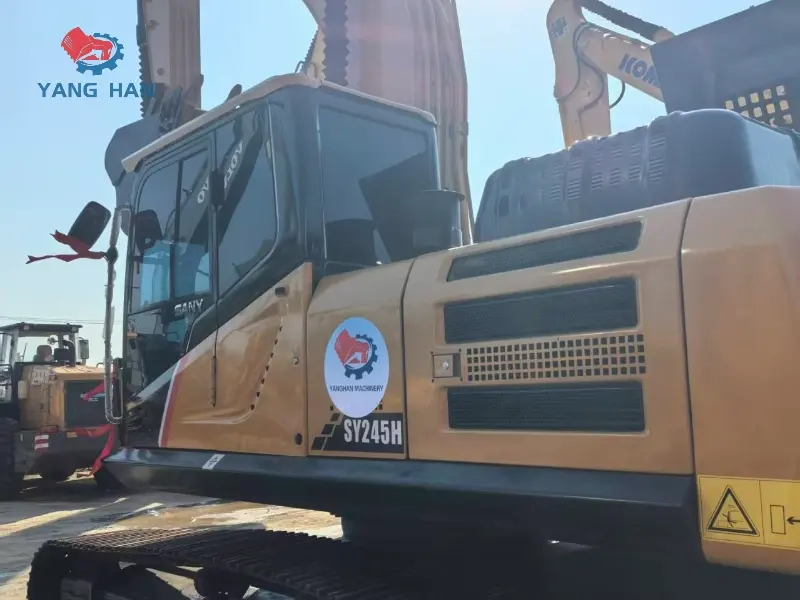

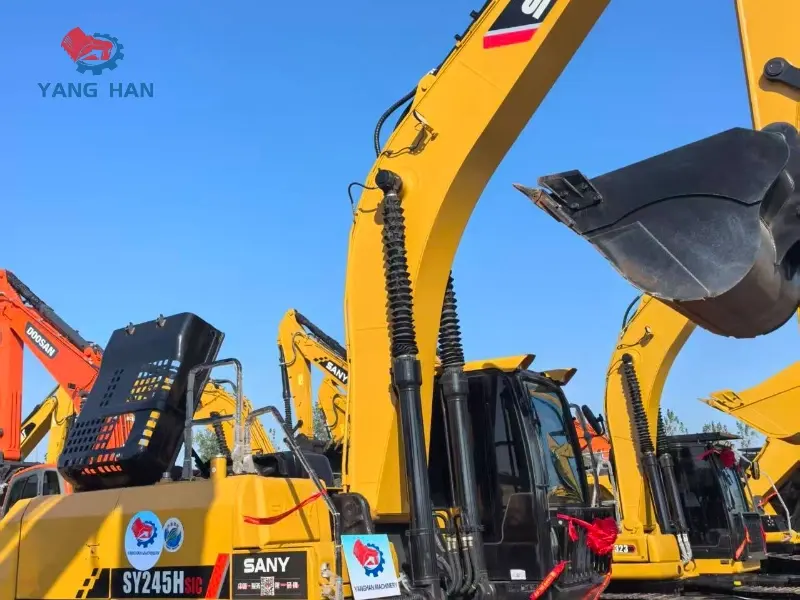

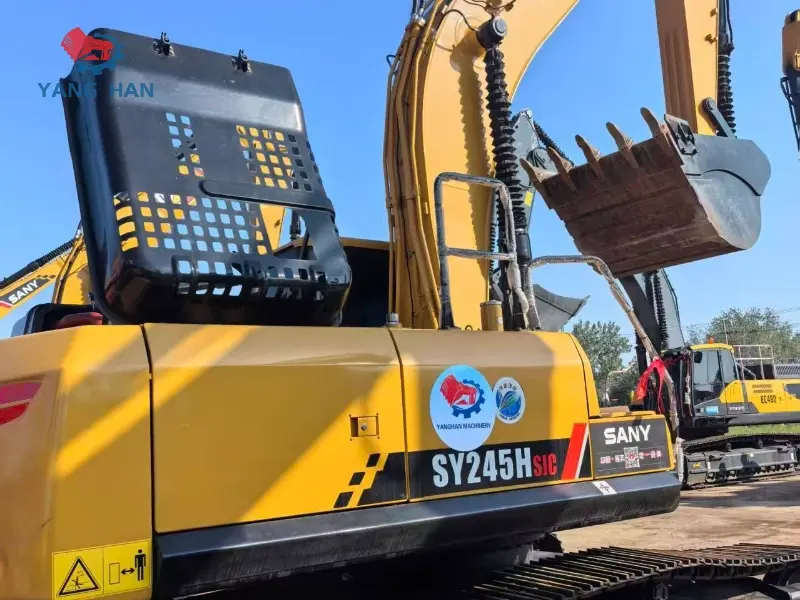

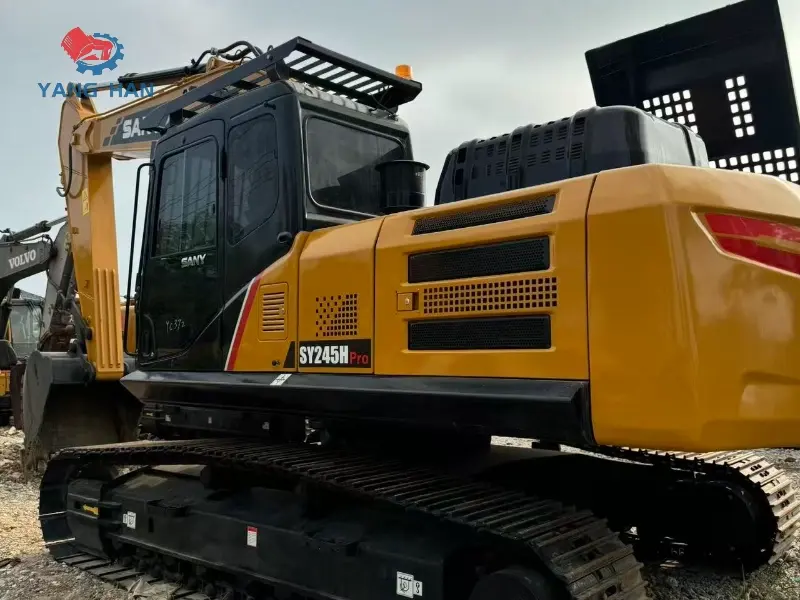

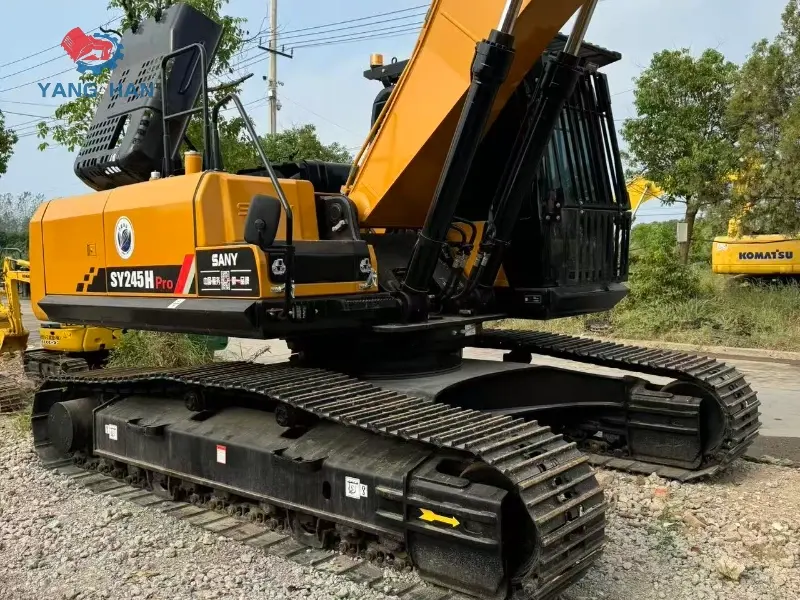

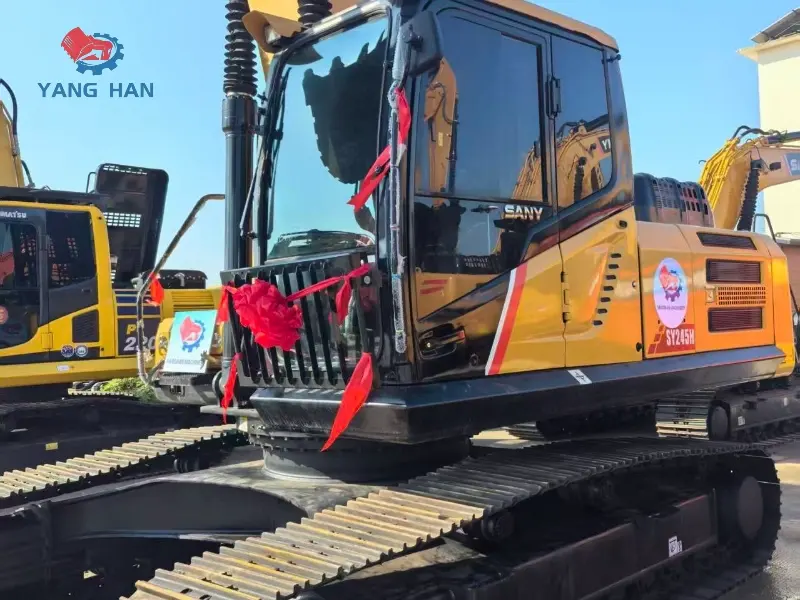

Advanced Model Hot Sale Second-hand Sany SY245G Large Crawler Excavator Global
