Specification Category	Details
Engine Model	Usually equipped with a Liugong – matched diesel engine (e.g., Weichai WP10G220E22 or equivalent), meeting Tier 2/Tier 3 emission standards (varies by regional market requirements)
Net Power (SAE J1349)	Approximately 162 kW (220 hp) at rated rpm (around 2200 rpm, specific value depends on engine calibration)
Gross Power (SAE J1995)	Approximately 168 kW (228 hp) at rated rpm (consistent with net power, with a slight difference due to power loss factors)
Operating Weight (Typical, with Standard General Purpose Bucket)	Approximately 16,000 – 17,500 kg (35,274 – 38,581 lb) (varies based on bucket specifications, counterweight configuration, and additional accessories)
Rated Load Capacity (ISO 14397 – 1)	Approximately 5,000 kg (11,023 lb) (complies with international ISO load rating standards, suitable for general – purpose loading operations)
Bucket Capacity (General Purpose, Struck)	Approximately 3.0 – 3.5 m³ (3.9 – 4.6 yd³) (standard struck volume for general construction, mining, and material handling scenarios)
Bucket Capacity (General Purpose, Heaped, 2:1 Fill Factor)	Approximately 4.0 – 4.8 m³ (5.2 – 6.3 yd³) (heaped volume under the standard 2:1 fill factor, reflecting actual material carrying capacity)
Static Tipping Load (Full Turn)	Approximately 12,500 – 13,500 kg (27,558 – 29,762 lb) (tipping load when the machine is in full – turn working condition, ensuring operational stability)
Static Tipping Load (Straight)	Approximately 14,500 – 15,500 kg (31,967 – 34,172 lb) (tipping load when the machine moves straight, an important indicator of load – bearing safety)
Travel Speed (Max, Forward/Reverse)	Max forward speed: Approximately 38 – 42 km/h (23.6 – 26.1 mph); Max reverse speed: Approximately 22 – 26 km/h (13.7 – 16.2 mph) (powered by a powershift transmission for smooth speed adjustment)
Wheelbase	Approximately 2,750 – 2,900 mm (108.3 – 114.2 in) (optimized wheelbase design balances maneuverability and operational stability)
Overall Length (With Bucket on Ground)	Approximately 7,300 – 7,800 mm (287.4 – 307.1 in) (total length from the front edge of the bucket to the rear end of the machine, affecting space adaptation in narrow areas)
Overall Width (Over Tires, Standard)	Approximately 2,750 – 2,950 mm (108.3 – 116.1 in) (width measured over standard – sized tires, considering passage through construction site channels and transportation requirements)
Overall Height (To Top of Cab)	Approximately 2,950 – 3,100 mm (116.1 – 122.0 in) (height from the ground to the top of the operator’s cab, ensuring driver visibility and compliance with height limits in confined spaces)
Overall Height (To Top of Exhaust Stack)	Approximately 3,200 – 3,400 mm (126.0 – 133.9 in) (height from the ground to the top of the exhaust stack, relevant to overhead obstacle avoidance)
Dump Height (At Maximum Lift)	Approximately 3,100 – 3,300 mm (122.0 – 129.9 in) (height of the bucket edge from the ground when the lift arm is fully raised, matching the height of common transport vehicles)
Dump Reach (At Maximum Lift)	Approximately 1,200 – 1,350 mm (47.2 – 53.1 in) (horizontal distance from the front axle to the bucket edge when the lift arm is fully raised, ensuring smooth unloading into transport vehicles)
Lift Time (Ground to Maximum Height)	Approximately 4.0 – 5.0 seconds (time for the lift arm to raise the bucket from the ground to maximum height, improving work efficiency)
Lower Time (Maximum Height to Ground)	Approximately 2.0 – 3.0 seconds (time for the lift arm to lower the bucket from maximum height to the ground, reducing idle time)
Tilt Time (Bucket Roll Back to Full Dump)	Approximately 2.5 – 3.5 seconds (time for the bucket to tilt from the fully rolled – back position to the fully dumped position, accelerating the unloading cycle)
Fuel Tank Capacity	Approximately 380 – 420 L (100.4 – 110.9 gal) (large fuel tank capacity supports long – term continuous operation, reducing refueling frequency)
Hydraulic System Capacity (Including Tank)	Approximately 190 – 230 L (50.2 – 60.8 gal) (total volume of the hydraulic system, ensuring stable oil supply for hydraulic components such as lift arms and buckets)
Hydraulic System Relief Pressure (Main)	Approximately 21,000 – 23,000 kPa (3,046 – 3,336 psi) (main relief pressure protects hydraulic pumps, valves, and cylinders from overpressure damage)
Hydraulic Flow (Main Pump)	Approximately 210 – 250 L/min (55.5 – 66.0 gpm) (sufficient hydraulic flow ensures rapid response of lift and tilt actions)
Tire Size (Standard, Front/Rear)	Commonly 23.5 – 25 (L – 3) / 23.5 – 25 (L – 3) (heavy – duty off – road tires with strong wear resistance and grip, suitable for harsh construction site conditions)
Operating Voltage	24 V DC (dual – battery configuration provides reliable starting power and supports the operation of electrical systems such as lights, air conditioning, and instrumentation)

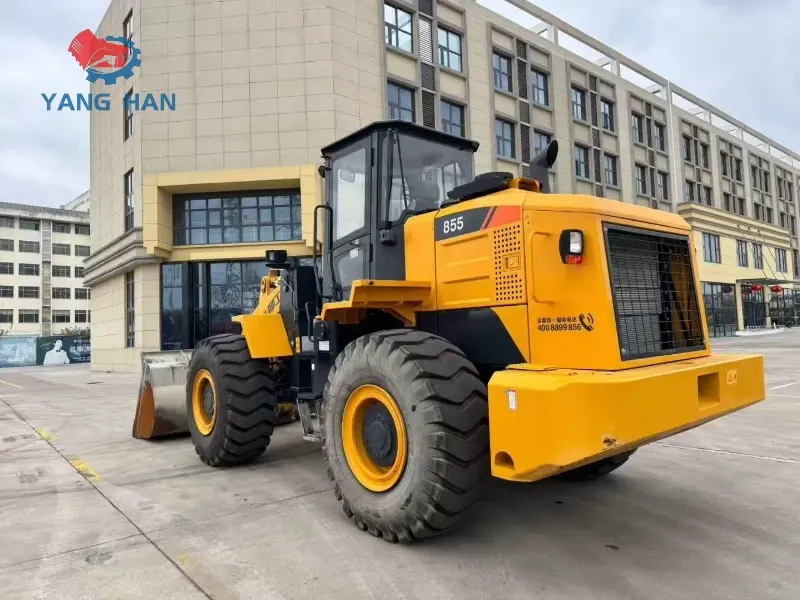

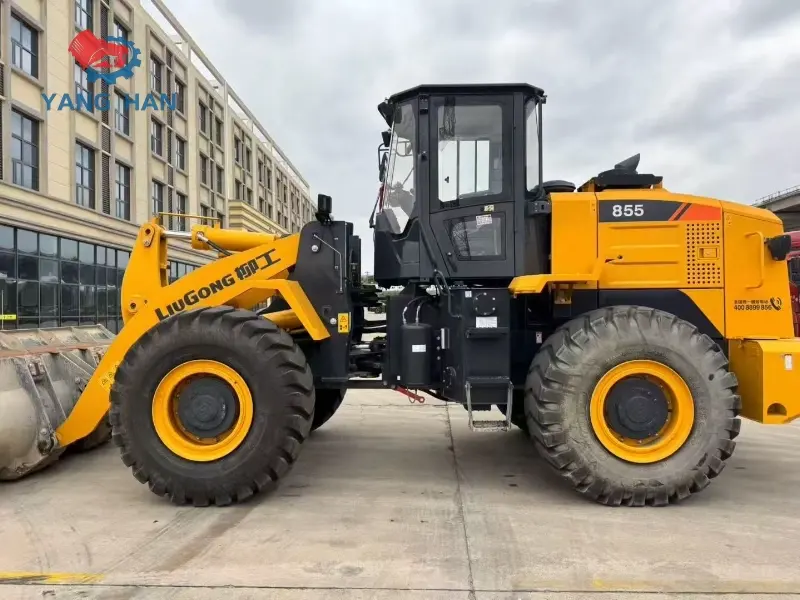

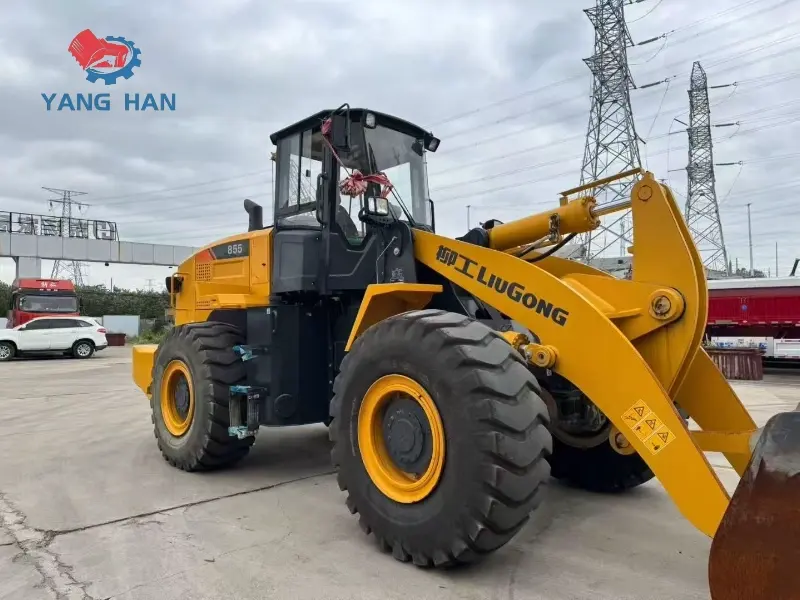

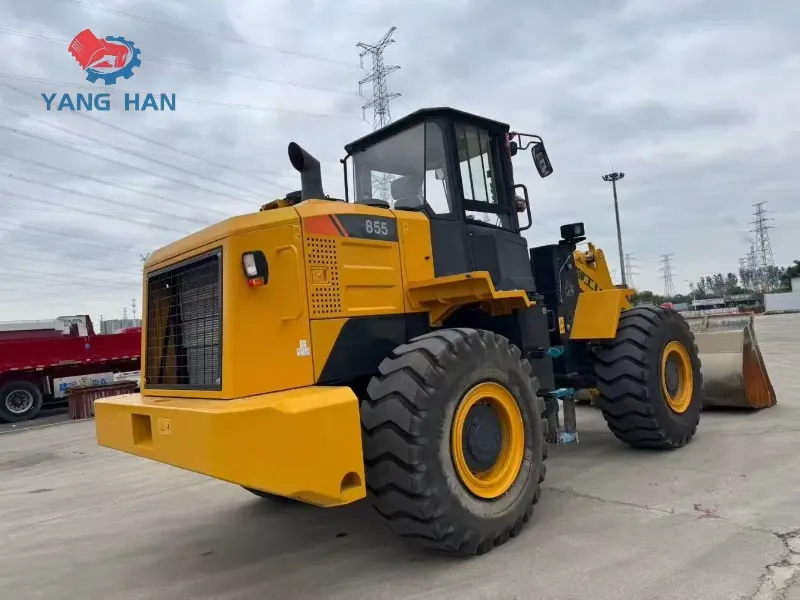

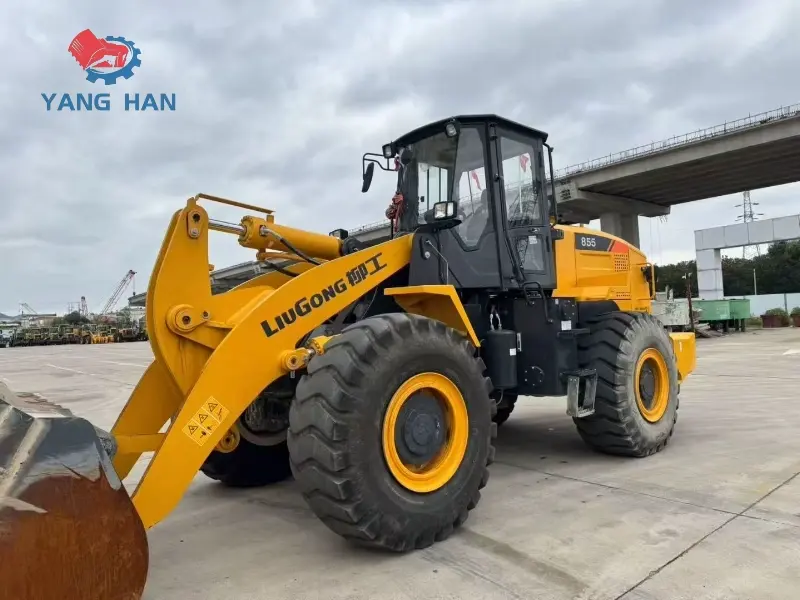

Durable Efficient Used Liugong 855 Wheel Loader Sand Digging Machine for Sale
