Specification Category	Details
Engine Model	Cat C13 ACERT™ Diesel Engine
Net Power (SAE J1349)	205 kW (275 hp) at 1800 rpm
Gross Power (SAE J1995)	213 kW (285 hp) at 1800 rpm
Operating Weight (Typical, with 3.8 m³ General Purpose Bucket)	Approximately 23,814 kg (52,500 lb)
Rated Load Capacity (ISO 14397-1)	6,500 kg (14,330 lb)
Bucket Capacity (General Purpose, Struck)	3.8 m³ (5.0 yd³)
Bucket Capacity (General Purpose, Heaped, 2:1 Fill Factor)	5.2 m³ (6.8 yd³)
Static Tipping Load (Full Turn)	16,830 kg (37,100 lb)
Static Tipping Load (Straight)	19,280 kg (42,500 lb)
Travel Speed (Max, Forward/Reverse)	38.0 km/h (23.6 mph) / 24.0 km/h (14.9 mph)
Wheelbase	3,454 mm (136 in)
Overall Length (With Bucket on Ground)	8,734 mm (343.9 in)
Overall Width (Over Tires, Standard)	3,277 mm (129 in)
Overall Height (To Top of Cab)	3,454 mm (136 in)
Overall Height (To Top of Exhaust Stack)	3,848 mm (151.5 in)
Dump Height (At Maximum Lift)	3,470 mm (136.6 in)
Dump Reach (At Maximum Lift)	1,295 mm (51 in)
Lift Time (Ground to Maximum Height)	5.2 seconds
Lower Time (Maximum Height to Ground)	3.2 seconds
Tilt Time (Bucket Roll Back to Full Dump)	2.8 seconds
Fuel Tank Capacity	473 L (125 gal)
Hydraulic System Capacity (Including Tank)	218 L (57.6 gal)
Hydraulic System Relief Pressure (Main)	24,132 kPa (3,500 psi)
Hydraulic Flow (Main Pump)	250 L/min (66 gpm)
Tire Size (Standard, Front/Rear)	23.5R25 (L-3) / 23.5R25 (L-3)
Operating Voltage	24 V DC

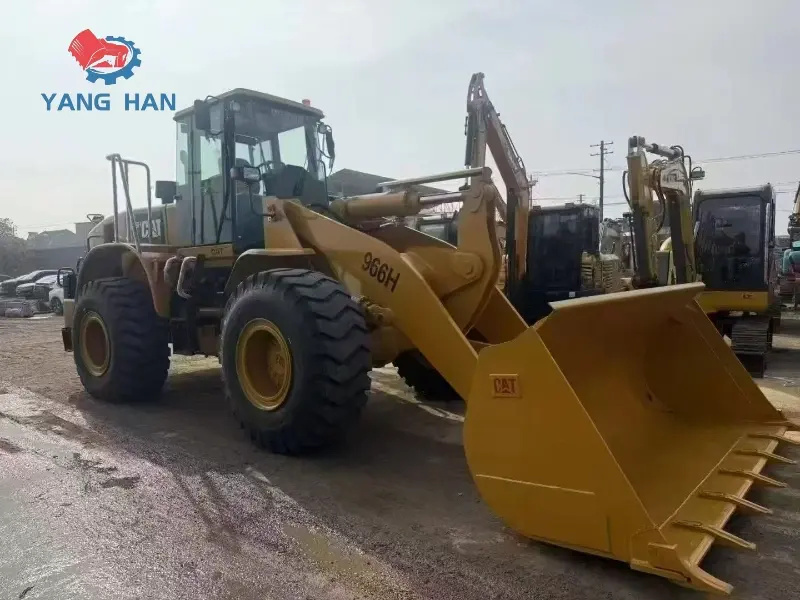

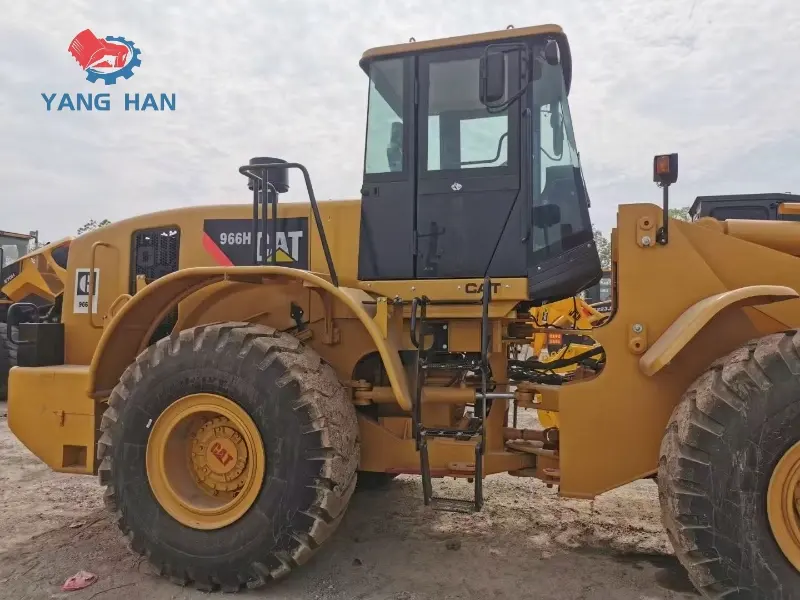

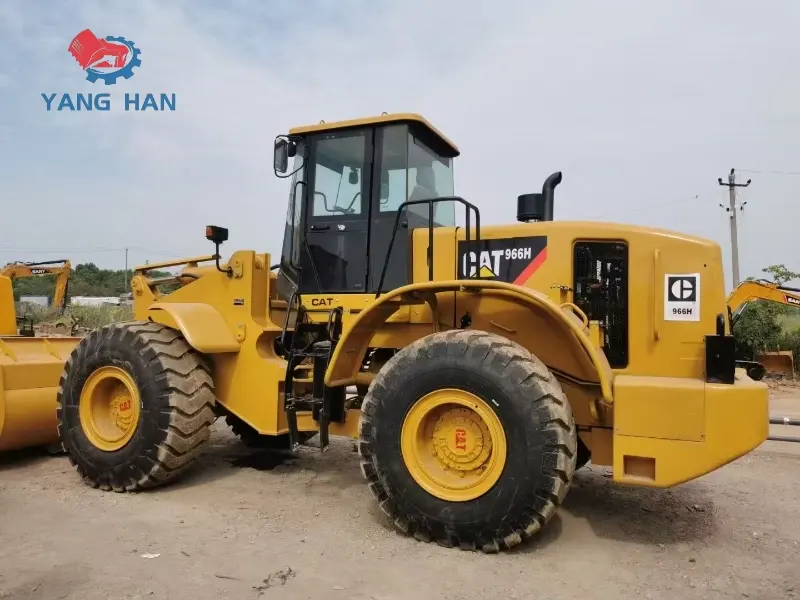

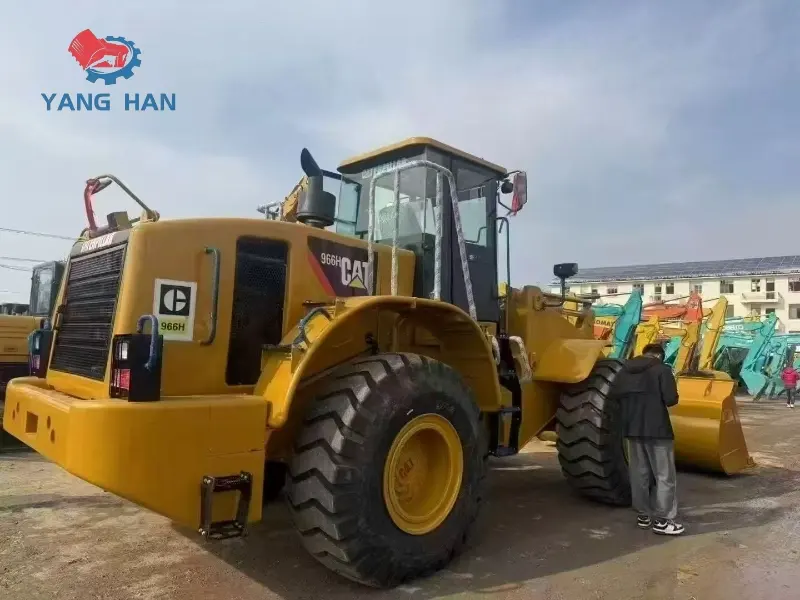

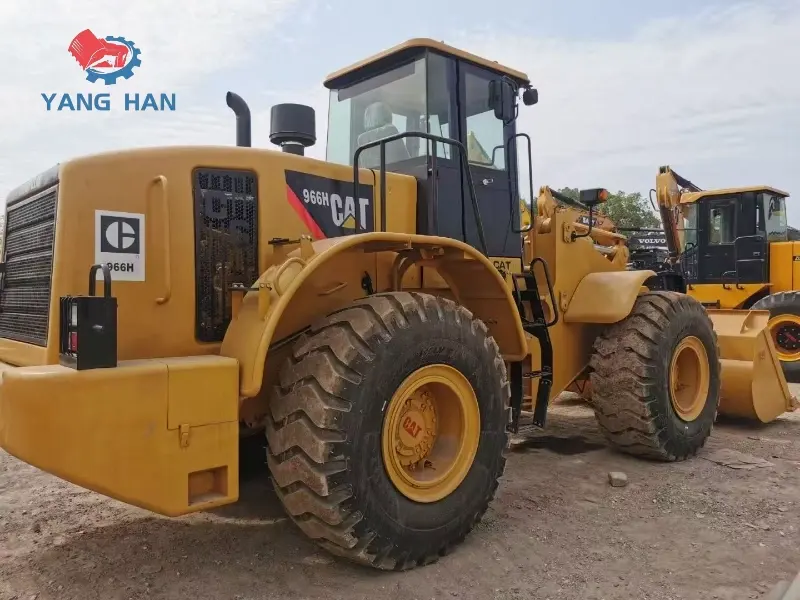

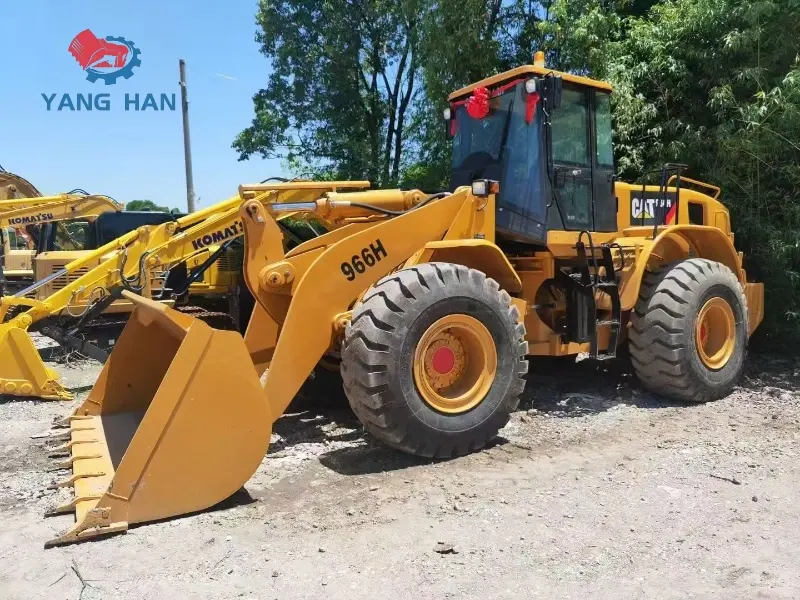

High Capacity Powerful Used Caterpillar 966 Wheel Loader Quarry Mining Machine Supplier
