Parameter	Value	Parameter	Value	Parameter	Value
Model	ZX210-3	Operating Weight	21,900 kg (ISO standard)	Bucket Capacity (ISO Heaped)	0.51–1.20 m³ (0.91 m³ standard)

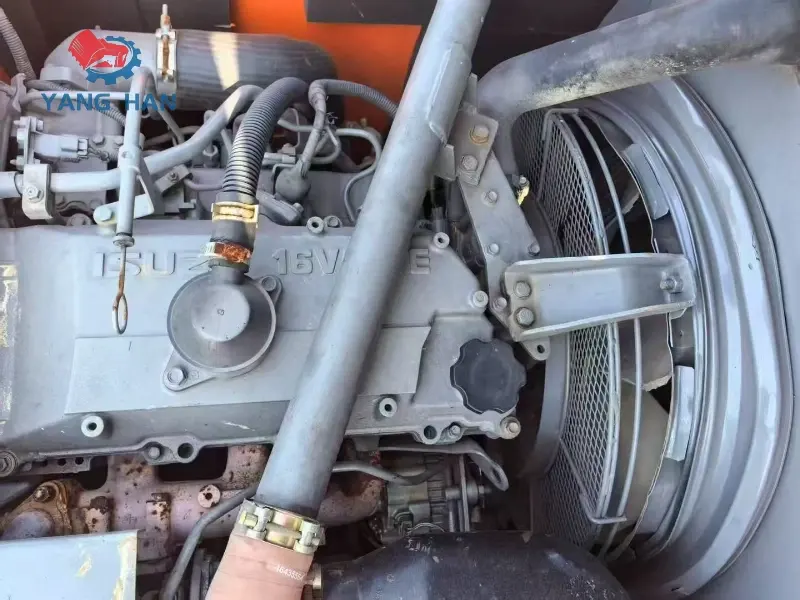

Engine Model	Isuzu AI-4HK1X (4-cylinder)	Rated Power (Net)	122 kW (164 PS) @ 2,000 rpm	Displacement	5.193 L
Max. Bucket Digging Force	137 kN (ISO)	Max. Stick Digging Force	94 kN	Rotation Speed	13.3 rpm
Travel Speed	5.5 km/h (High) / 3.4 km/h (Low)	Gradeability	70% (35°)	Ground Pressure	43 kPa (6.4 psi)
Max. Digging Radius	10,170 mm	Max. Digging Depth	6,670 mm (21.89 ft)	Max. Loading Height	7,180 mm (23.56 ft)
Hydraulic System Pressure	34.3 MPa (working)	Fuel Tank Capacity	400 L	Hydraulic Tank Capacity	240 L
Track On Ground Length	3,370 mm	Track Shoe Width	600 mm	Rear Swing Radius	2,750 mm (9.03 ft)
Transport Dimensions (L×W×H)	9,780×2,800×3,130 mm	Cab Height	3,080 mm	Minimum Ground Clearance	450 mm
Engine Torque	655 N·m @ 1,500 rpm	Emission Standard	Japan 2006 (Tier 3 equivalent)	Boom/Stick (Std)	5,680 mm / 2,910 mm

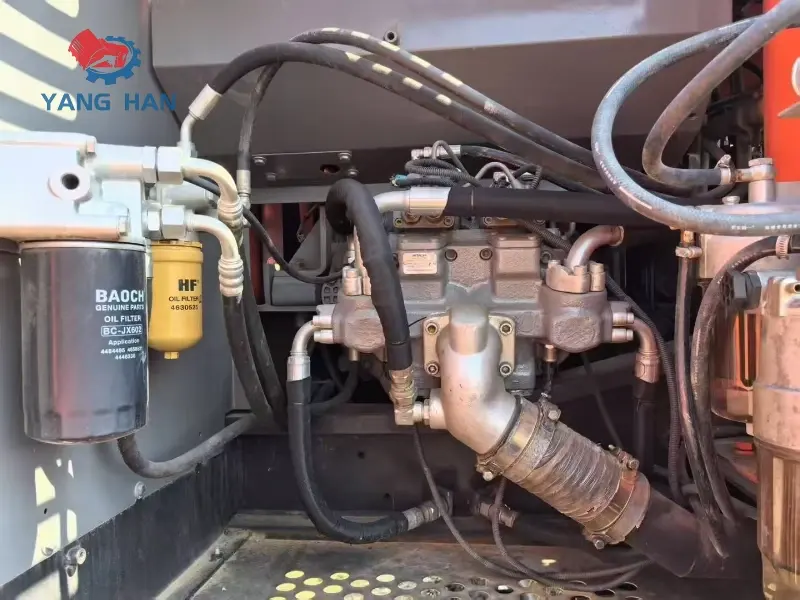

Main Pump Flow	2×160 L/min (HIOS III system)	Coolant Capacity	26 L	Engine Oil Capacity	23 L
Optional Features	Hydraulic quick hitch, rubber pads	Tear-out Force	137 kN	Swing Torque	+13% vs 前代 (1,850 N・m)

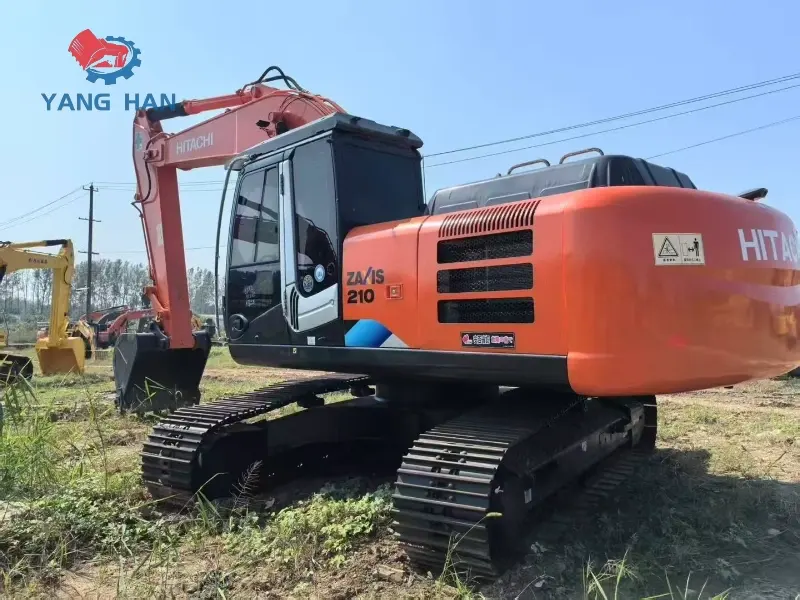

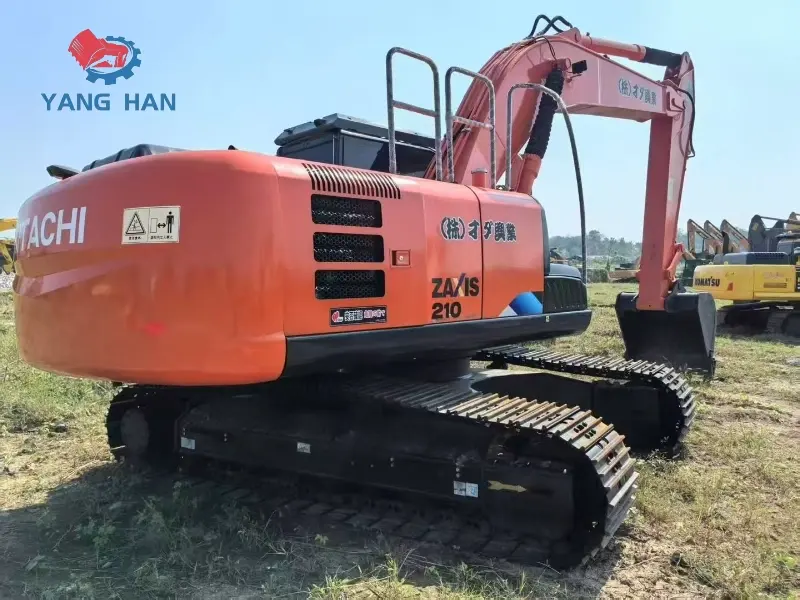

High Performance Efficient Second-hand Hitachi ZX210 Hydraulic Excavator Global Supply
