Parameter	Value	Parameter	Value	Parameter	Value
Model	SY215C	Operating Weight	21,900 kg (ISO standard)	Bucket Capacity (ISO Heaped)	1.1 m³ (standard) / 0.8–1.3 m³ (optional)
Engine Model	Mitsubishi 4M50 (4-cyl turbo)	Rated Power (Net)	118 kW (158 HP) @ 2,000 rpm	Displacement	4.9 L
Max. Bucket Digging Force	127 kN (ISO)	Max. Stick Digging Force	103 kN (ISO)	Rotation Speed	11.6 rpm
Travel Speed	5.4 km/h (High) / 3.4 km/h (Low)	Gradeability	70% (35°)	Ground Pressure	47.4 kPa (600 mm tracks)
Max. Digging Depth	6,600 mm (21’8″)	Max. Digging Radius	10,280 mm (33’9″)	Max. Loading Height	6,730 mm (22’1″)
Track Width (Steel)	2,980 mm (运输宽度)	Track On Ground Length	3,445 mm	Rear Swing Radius	2,870 mm
Fuel Tank Capacity	340 L	Hydraulic System Pressure	34.3 MPa (working)	Hydraulic Pump Flow	2×220 L/min (dual variable)
Transport Dimensions (L×W×H)	9,680×2,980×3,440 mm	Minimum Ground Clearance	470 mm	Cab Height	3,100 mm
Engine Torque	610 N·m @ 1,600 rpm	Emission Standard	China III / EU Stage IIIA	Boom/Stick Length (Std)	5,700 mm / 2,900 mm
Coolant Capacity	27.6 L	Engine Oil Capacity	22 L	Traction Force	167 kN
Standard Features	ROPS/FOPS Cab, Pilot Controls, LED Lights	Hydraulic Quick Hitch	Optional	Maintenance Interval	500H (filters) / 2000H (hydraulic oil)

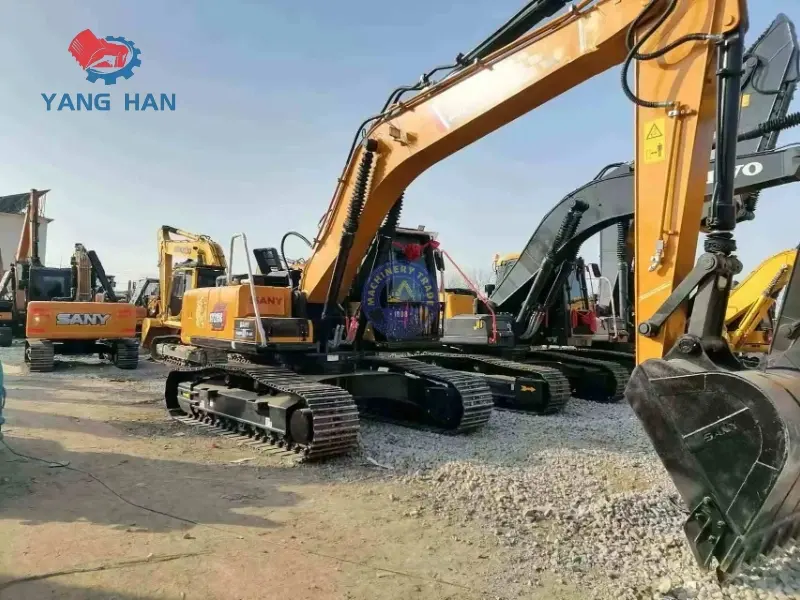

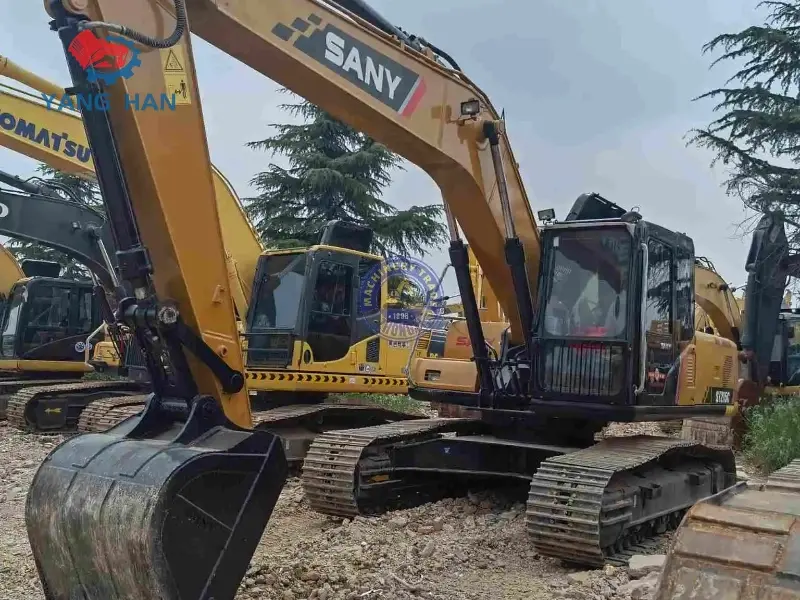

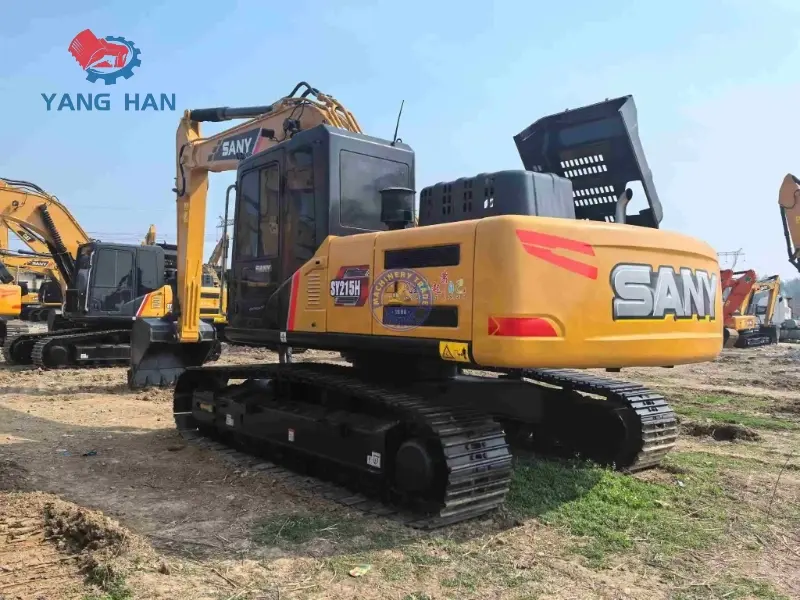

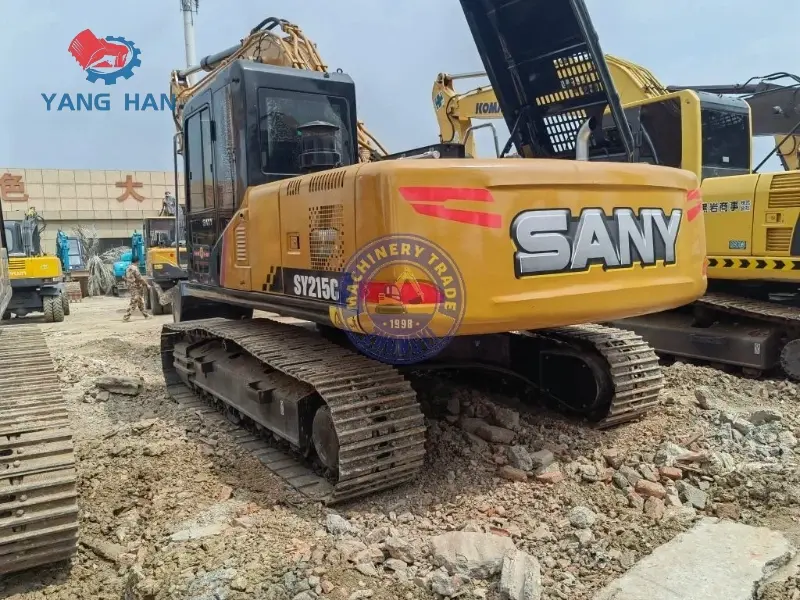

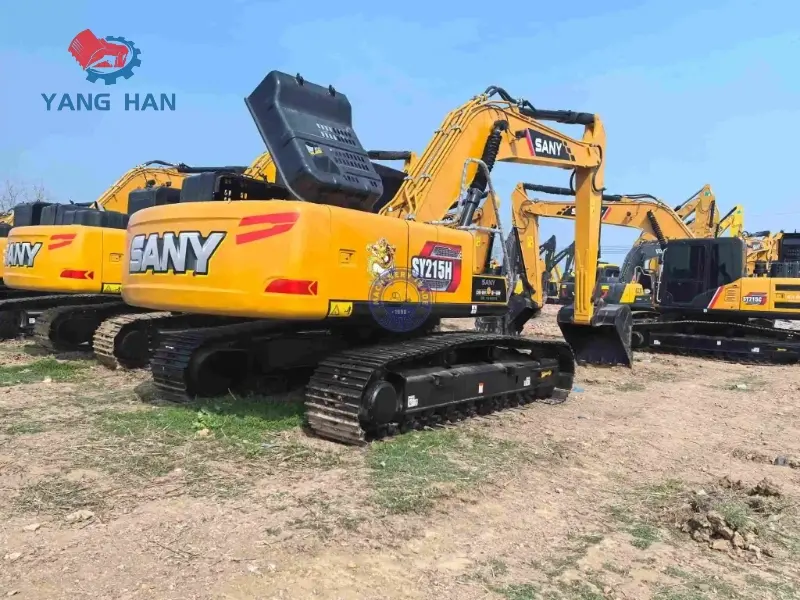

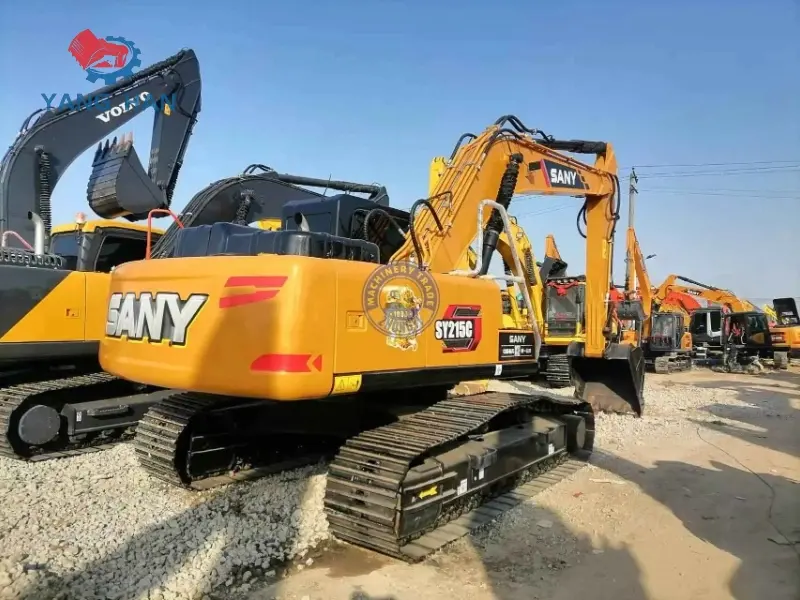

Mining Spec Good Condition Second-hand Sany SY215C Crawler Excavator Supplier Solution
