Price:25000＄
Bucket capacity:1.35m³
Machine working weight：23000KG
Working time：600H
Min Order: 1unit
Sany

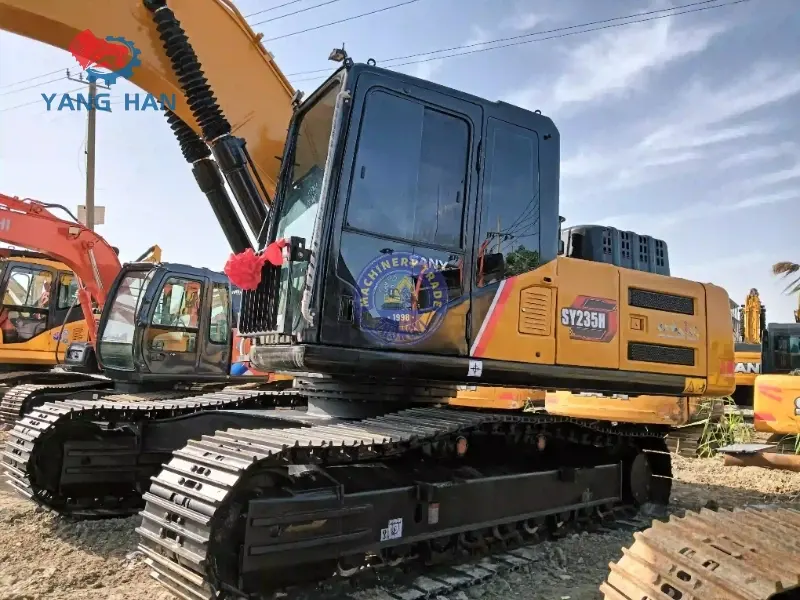

Powerful Durable Used Sany SY235H Heavy Hydraulic Excavator Mining Equipment
Product Details
| Parameter | Value | Parameter | Value | Parameter | Value |
| Model | SY235H-SA | Operating Weight | 23,000 kg (ISO standard) | Bucket Capacity (ISO Heaped) | 1.35 m³ (standard) / 1.1–1.6 m³ (optional) |
| Engine Model | Isuzu 4HK1X (4-cyl turbo, Tier 4) | Rated Power (Net) | 128 kW (172 HP) @ 2,000 rpm | Displacement | 5.193 L |
| Max. Bucket Digging Force | 158 kN (ISO) | Max. Stick Digging Force | 124 kN (ISO) | Rotation Speed | 11.5 rpm |
| Travel Speed | 5.6 km/h (High) / 3.5 km/h (Low) | Gradeability | 70% (35°) | Ground Pressure | 51 kPa (600 mm tracks) |
| Max. Digging Depth | 6,450 mm (21’2″) | Max. Digging Radius | 9,745 mm (31’11”) | Max. Loading Height | 6,735 mm (22’1″) |
| Track Width (Steel) | 2,980 mm (运输宽度) | Track On Ground Length | 3,640 mm | Rear Swing Radius | 2,900 mm |
| Fuel Tank Capacity | 340 L | Hydraulic System Pressure | 34.3 MPa (working) | Hydraulic Pump Flow | 2×220 L/min (dual variable) |
| Transport Dimensions (L×W×H) | 9,635×2,980×3,255 mm | Minimum Ground Clearance | 442 mm | Cab Height | 3,100 mm |
| Engine Torque | 678 N·m @ 1,500 rpm | Emission Standard | China IV / EU Stage V | Boom/Stick Length (Std) | 5,700 mm / 2,900 mm |
| Coolant Capacity | 27.6 L | Engine Oil Capacity | 22 L | Traction Force | 167 kN |
| Standard Features | ROPS/FOPS Cab, 10″ LCD, Auto-idle | Hydraulic Quick Hitch | Optional | Maintenance Interval | 500H (filters) / 2000H (hydraulic oil) |
